MX PRO TUNNEL
Precision projection for tunnel lighting
Il nuovo MX-PRO TUNNEL è un proiettore LED ad alte prestazioni progettato specificamente per l’illuminazione di tunnel.
Go to download
An innovative product
designed to ensure safety
and visibility in lighting tunnels.
Latest generation optical technologies
Reinforcement and permanent
Three versions to satisfy any context of use.

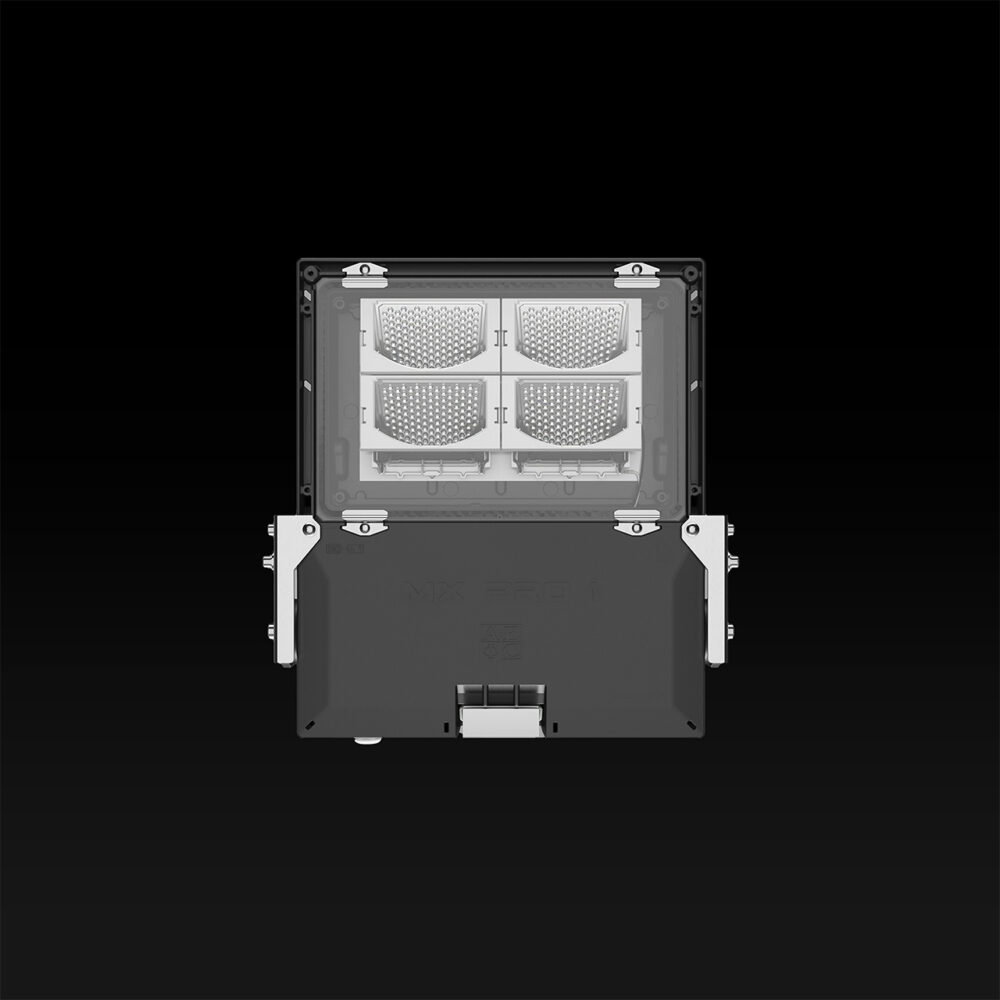

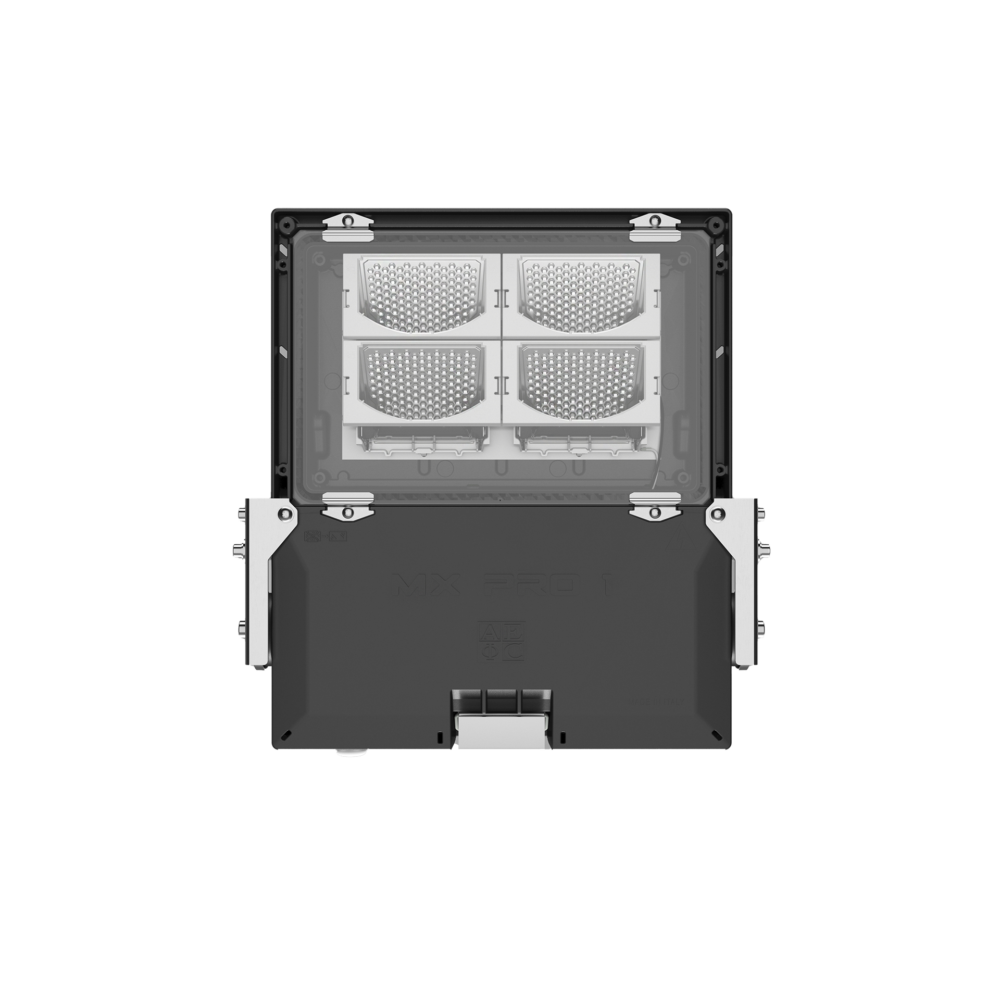

MX PRO 1 TUNNEL
4 LED modules

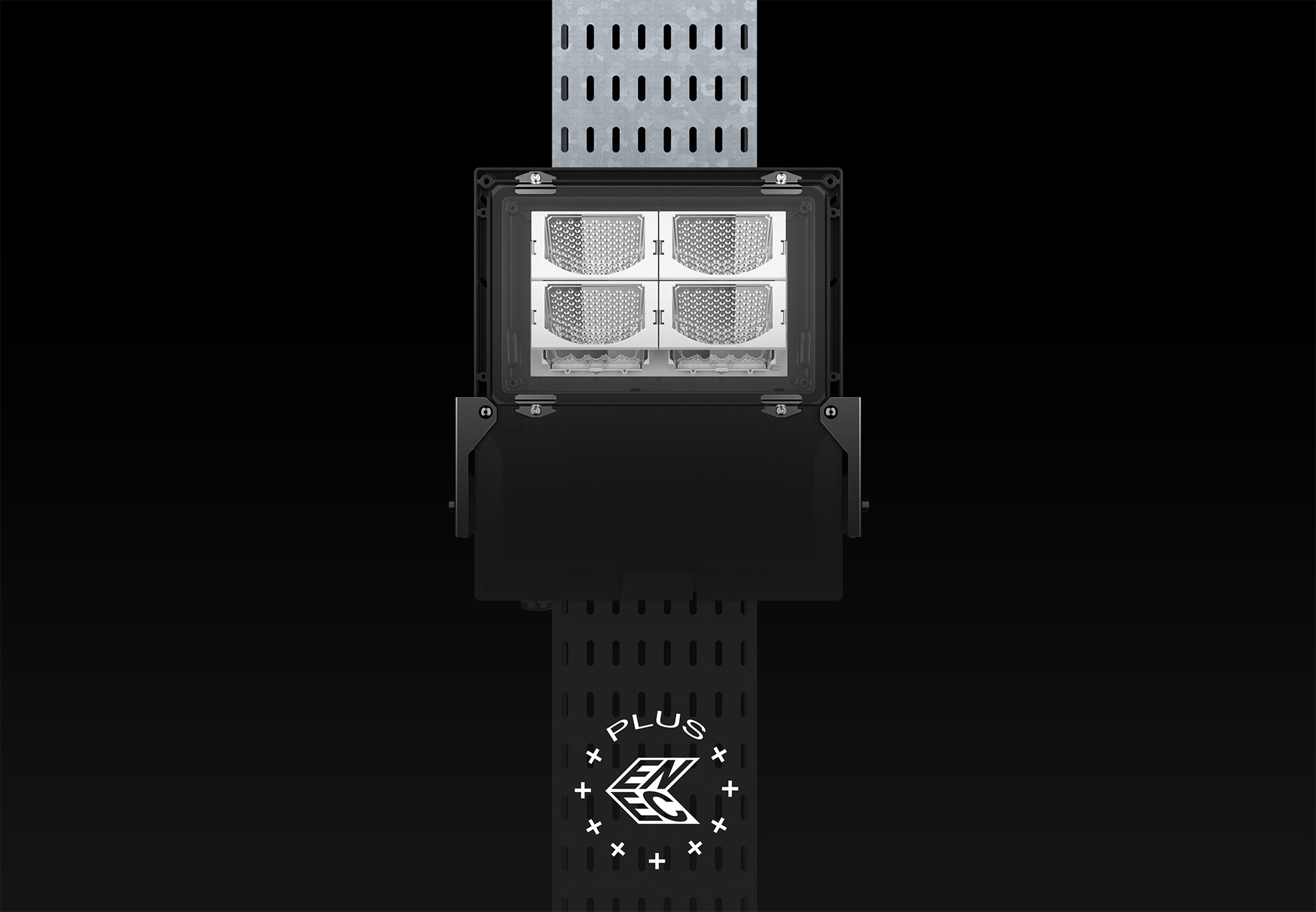

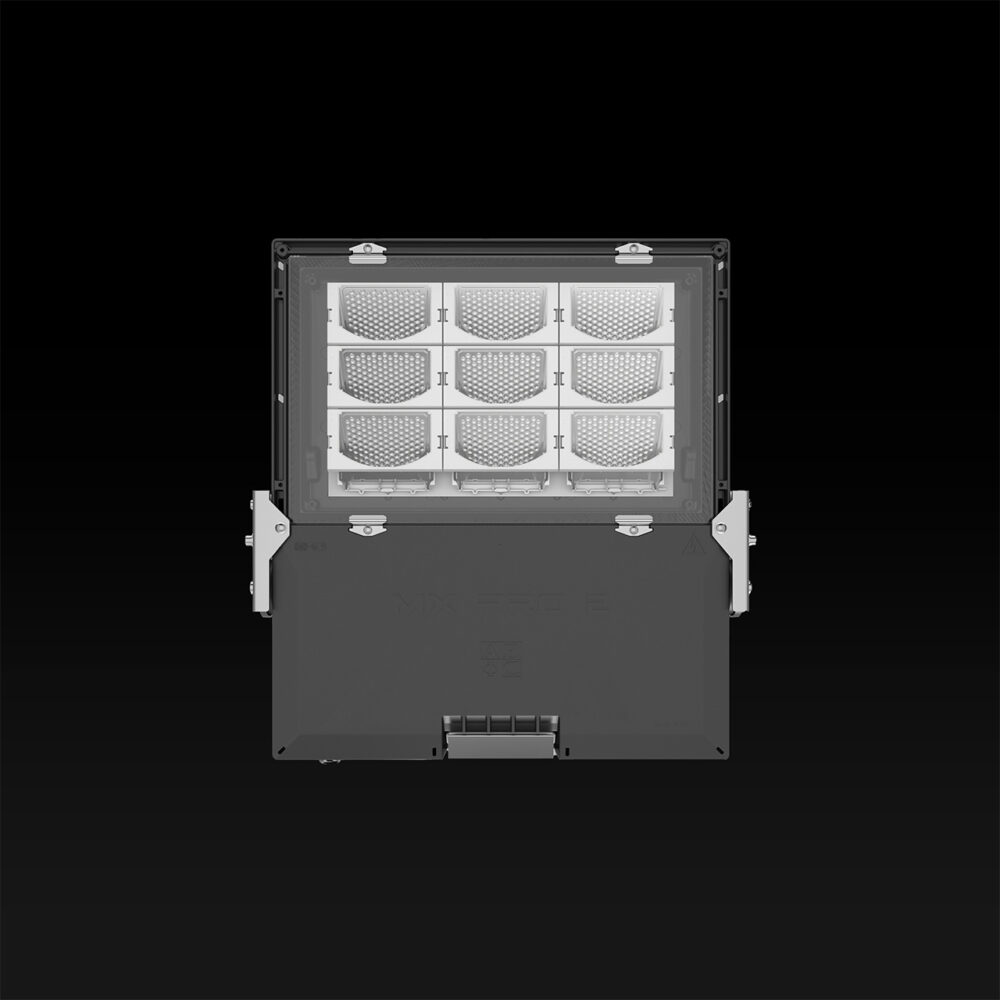

MX PRO 2 TUNNEL
9 LED modules
MX PRO 3 TUNNEL
20 LED modules

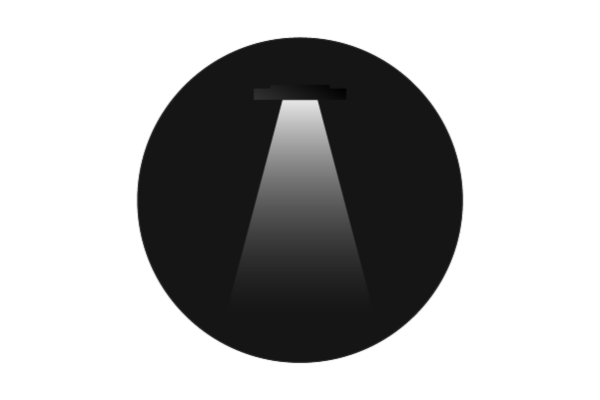

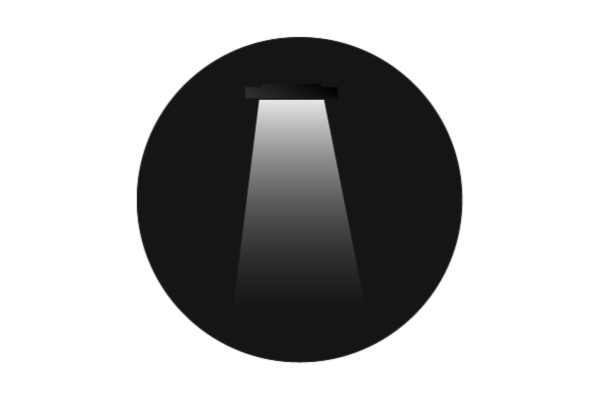

Specific optics for tunnel lighting
Symmetrical | Asymmetrical
Optical specifications for reinforcement and permanent road tunnel lighting.
Other optics available. Complete optical panorama can be consulted in the technical data sheet.

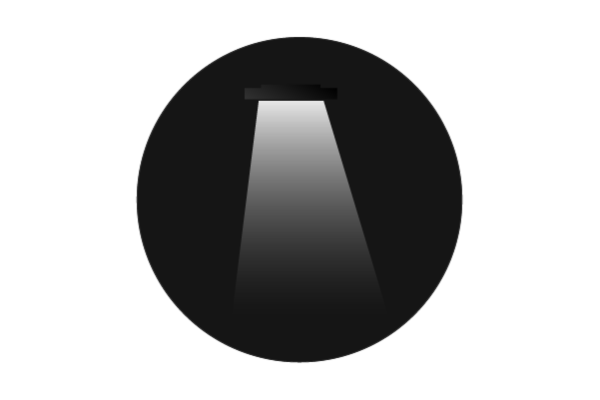

Asymmetric optics
Narrow Emission
AS-45N | AS-55N | AS-65N
Asymmetric optics
Medium Emission
AS-45M | AS-55M | AS-65M
Asymmetric optics
Wide Emission
AS-45W | AS-55W | AS-65W

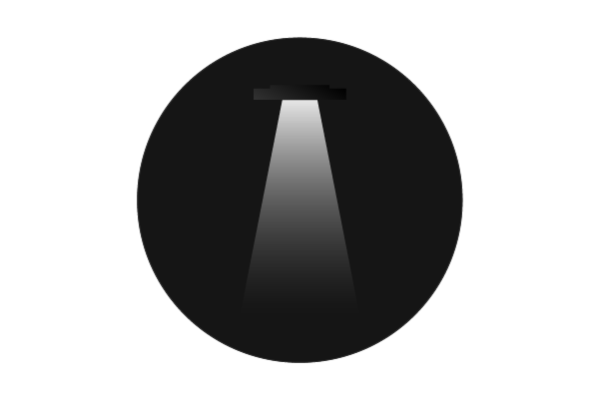

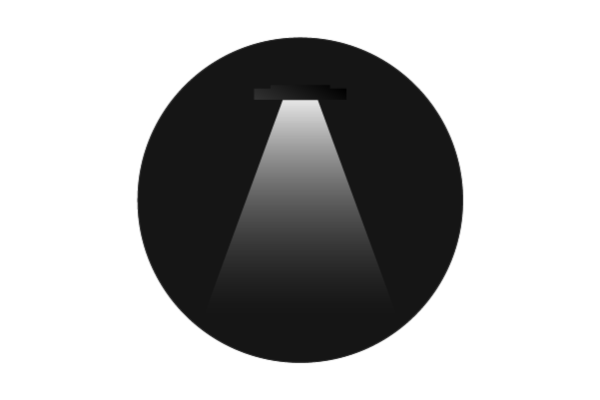

Symmetric optics
Extra Narrow Emission
TS-V
Symmetric optics
Narrow Emission
TS-ES | TS-US
Symmetric optics
Medium Emission
TS | TS-EM | TS-UM
Symmetric optics
Wide Emission
TS-A | TS-W
Symmetric optics
Extra Wide Emission
TS-05 | TS-07
Fixing systems
Two types of integrated bracket for duct or ceiling fixing.

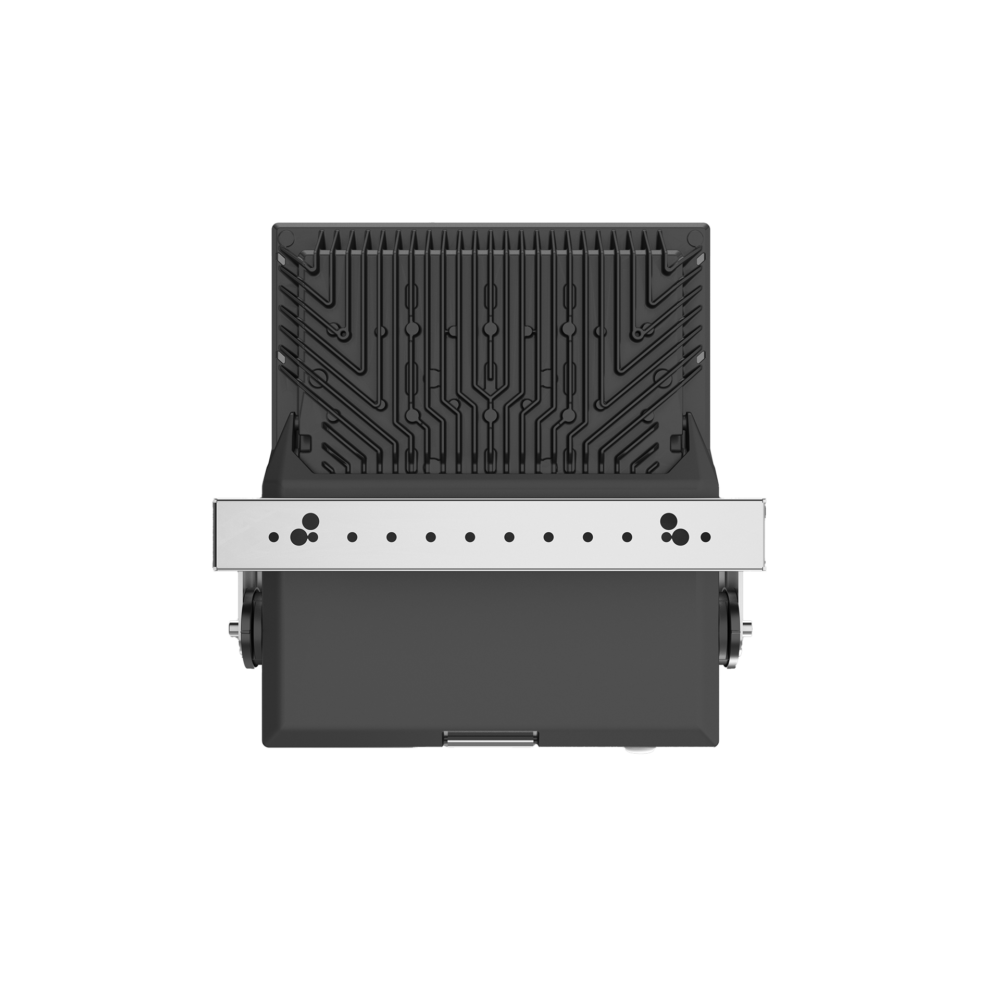

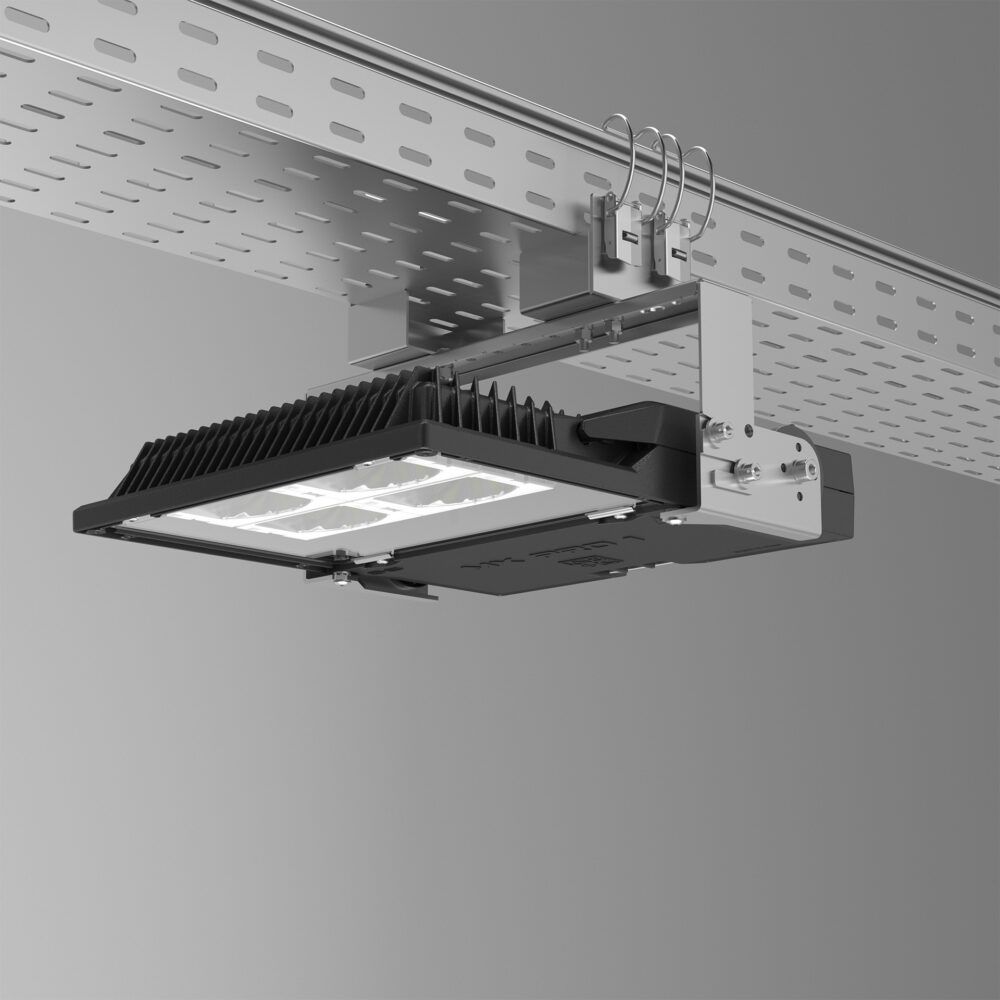

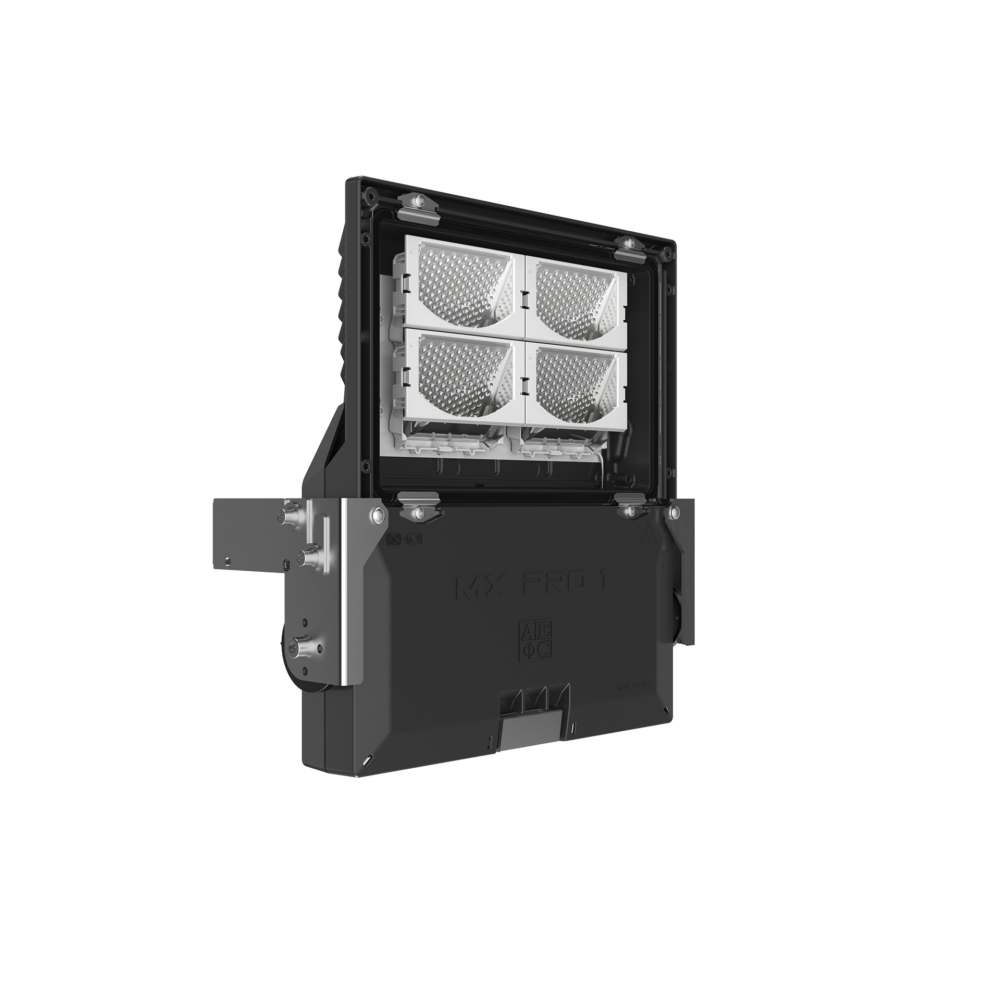

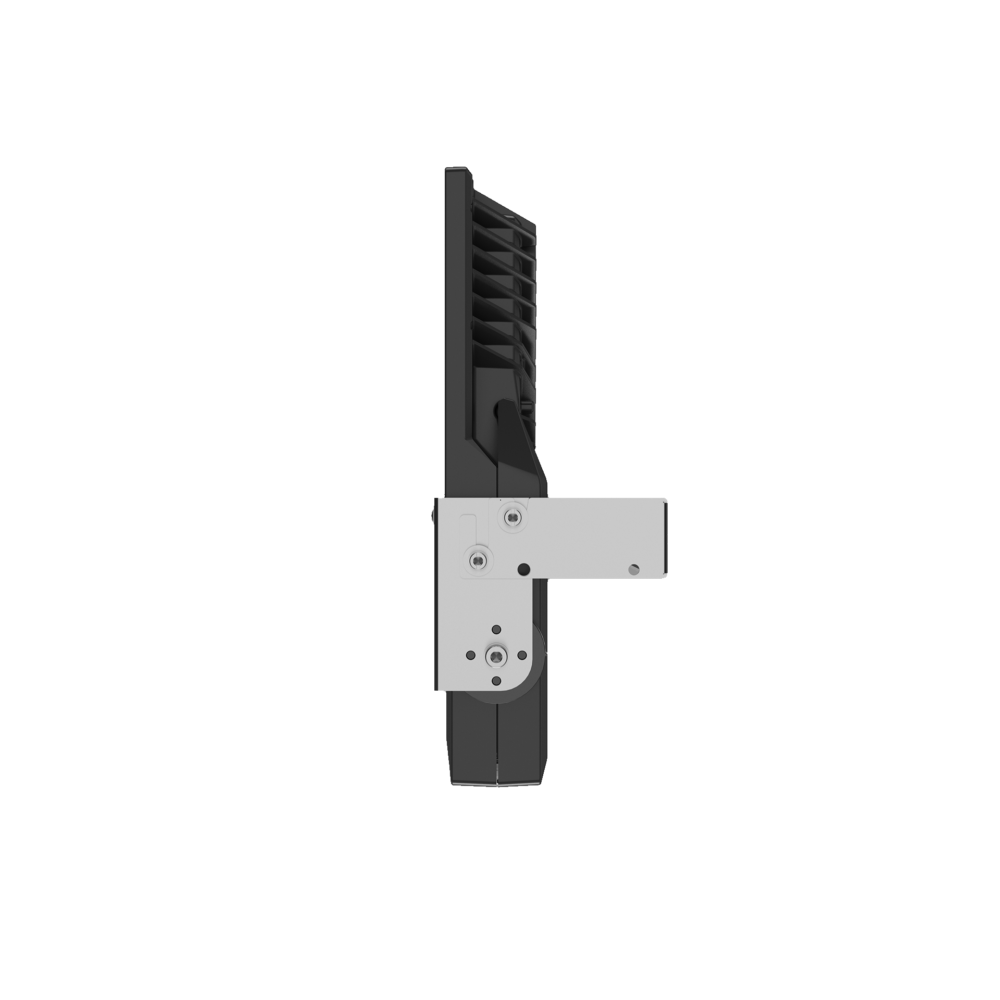

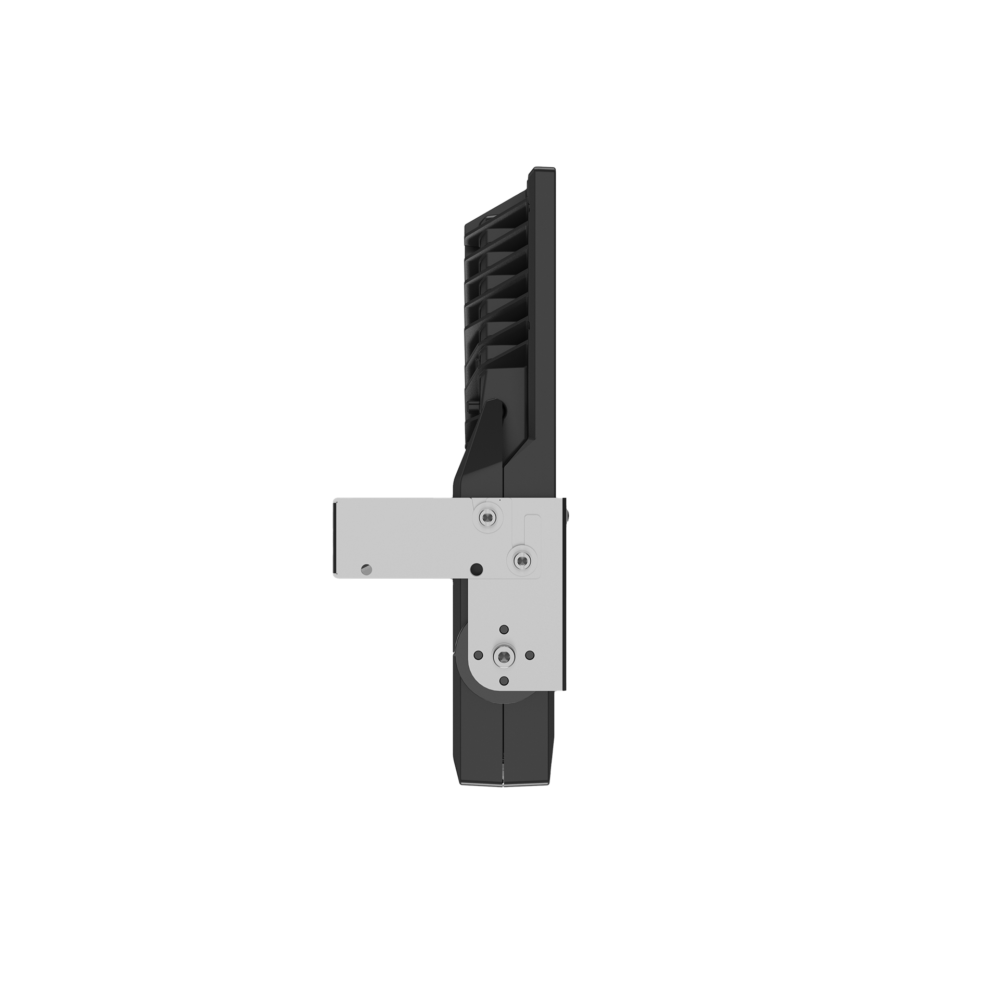

MX PRO 1 TUNNEL
Integrated bracket Type A

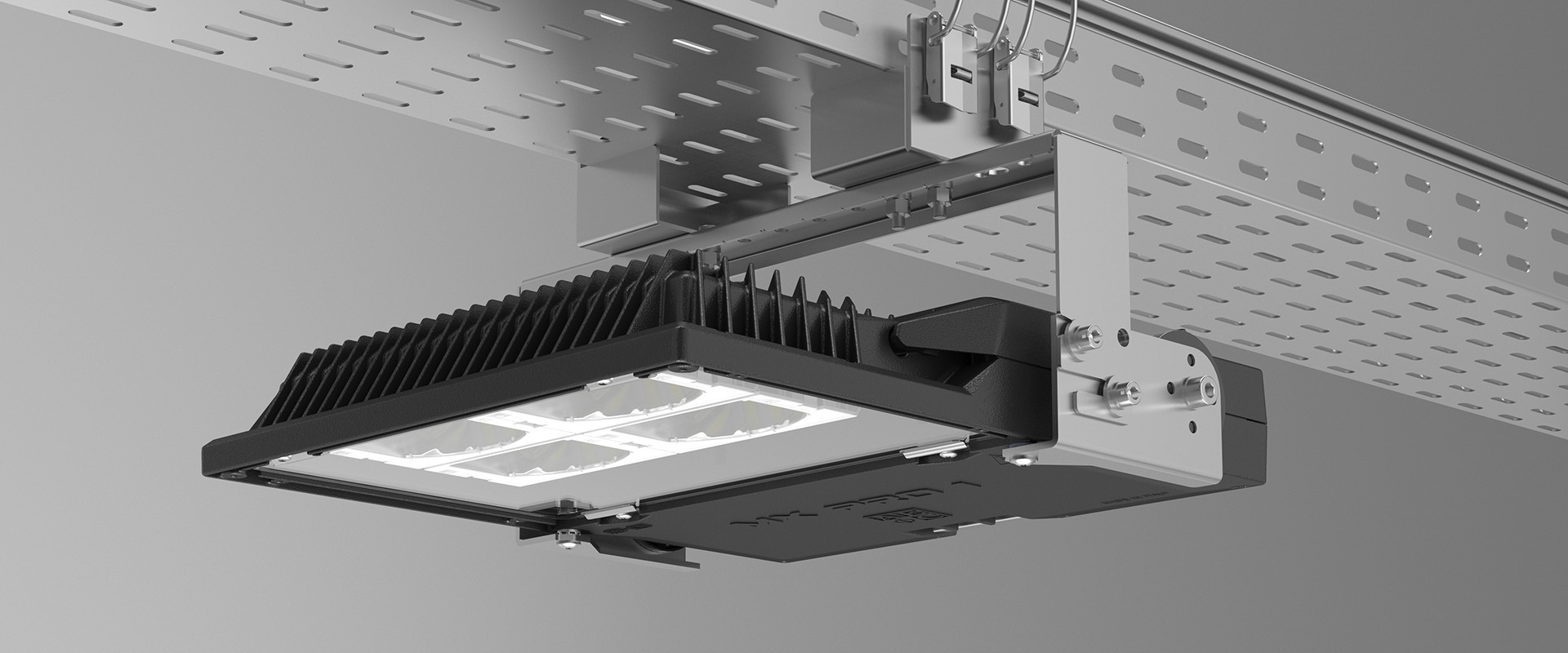

Universal channel fixing with quick release system (optional)

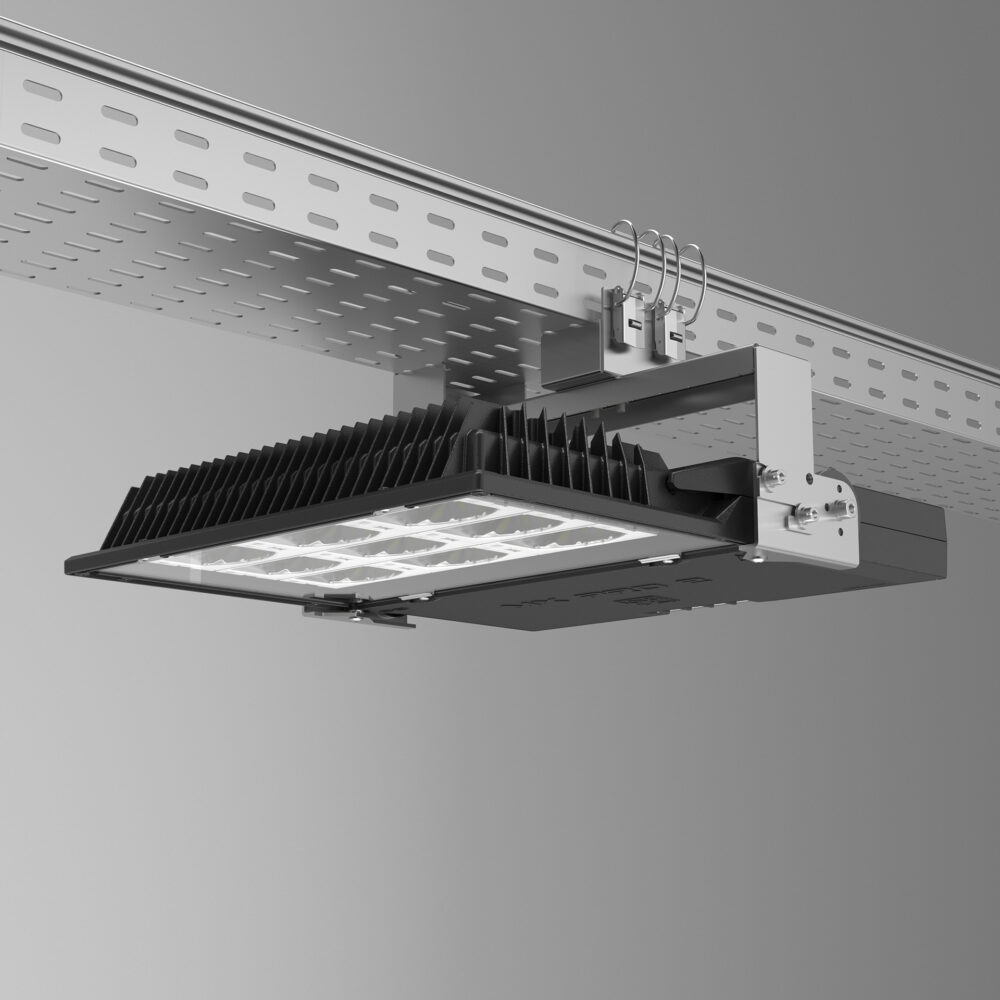

MX PRO 2 TUNNEL
Integrated bracket Type A
Universal channel fixing with quick release system (optional)
MX PRO 3 TUNNEL
Integrated bracket Type A
Universal channel fixing with quick release system (optional)

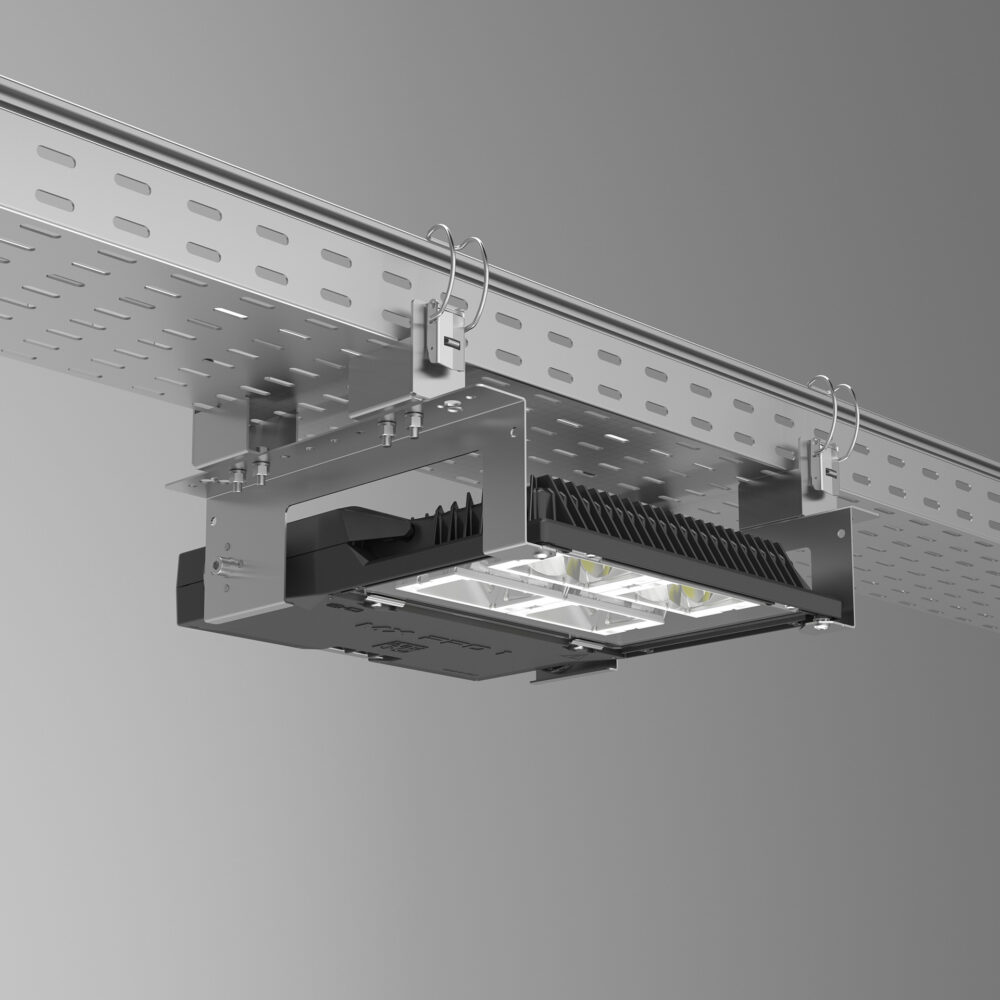

MX PRO 1 TUNNEL
Integrated bracket Type C
Universal channel fixing with quick release system (optional)

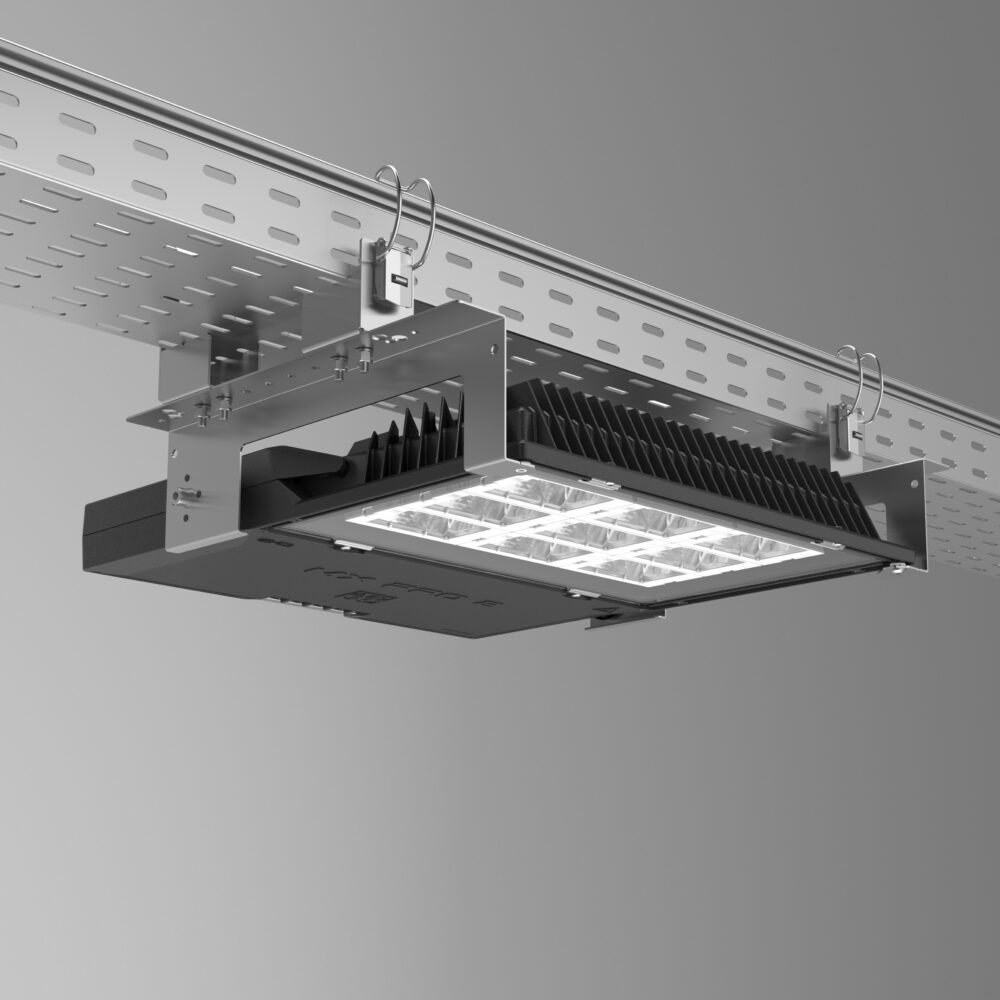

MX PRO 2 TUNNEL
Integrated bracket Type C
Universal channel fixing with quick release system (optional)
MX PRO 3 TUNNEL
Integrated bracket Type C
Universal channel fixing with quick release system (optional)

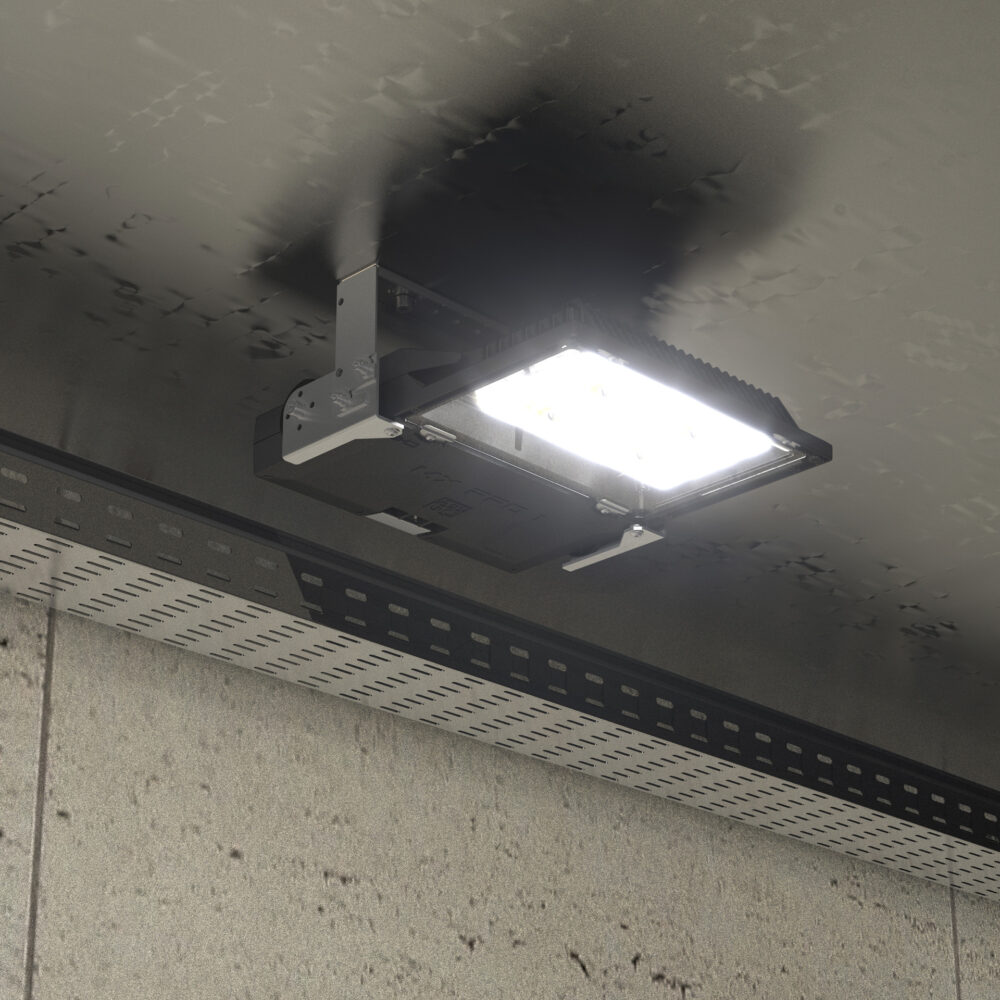

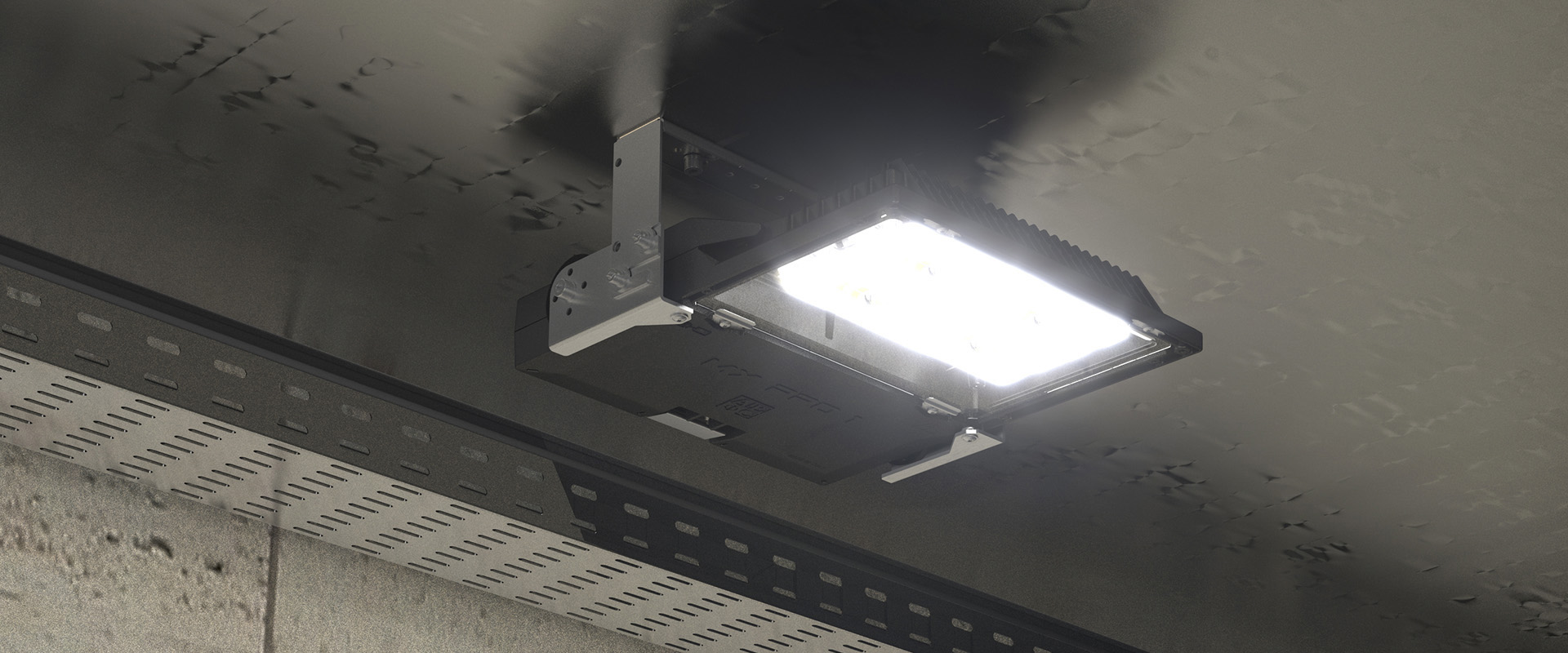

MX PRO 1 TUNNEL
Integrated bracket Type A
Universal ceiling fixing
Download
Download the technical documentation of the MX PRO TUNNEL series. Some files require authentication.
Mounting instructions
MX PRO TUNNEL SERIES
The file is reserved for registered users
2D dwg drawings
MX PRO 1 TUNNEL
The file is reserved for registered users
2D dwg drawings
MX PRO 2 TUNNEL
The file is reserved for registered users
2D dwg drawings
MX PRO 3 TUNNEL
The file is reserved for registered users
Product warranty
Mounting instructions
3DS files
2D dwg
Photometric files - Login
-
or
Consultancy and design for each type of lighting system.
